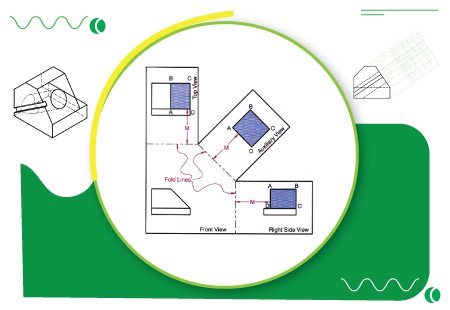

An auxiliary view is defined as an orthographic view, project on a plane other than the horizontal, frontal, or profile plane. This view does not fall under the six principal views. There is an infinite number of auxiliary view on a given object. Engineering students are often given assignment paper on Auxillary view, however, many of them lack a proper understanding of the topic and hence they look for Auxiliary Views assignment help from BookMyEssay. You can gather expert knowledge about the subject-matter once you avail our assignment writing services. We will provide you a well-researched custom writing service that is 100 percent authentic.

Kinds of Auxiliary Views

The name Auxiliary views are given as per the inclined lines in a principal plane. If an inclined plane is noticed in a frontal plane, the auxiliary view is known as Frontal Auxiliary View. If an inclined surface is at the top plane, the auxiliary view will be known as top Auxiliary view.

Auxiliary views are classified regarding the inclined lines that are discussed in Auxiliary Views assignment writing help as follows:

• Primary Auxiliary Views

This view is perpendicular to a principal plane. It makes an inclined view along with two other principal planes, known as Primary Auxiliary View. There are three kinds of Primary Auxiliary View because of the three principal planes such as the following:

1. Top Auxiliary View
2. Front Auxiliary View
3. Side Auxiliary View

• Secondary Auxiliary Views

These Auxiliary views are prepared in a plane that is not perpendicular to a principal plane. This view is formed if an inclined surface is neither perpendicular nor parallel to any principal plane. This auxiliary is known as Double Auxiliary view.

Use of Auxiliary Views

When you create engineering drawings, you have to show features in view where the drawings appear their actual size so they are dimensioned. An object is positioned in a way that major features and surfaces are either perpendicular or parallel to a principal plane, Views are selected so that the features are visible in three principal views. The most common views that are drawn are the top, front, right, or left side.

There are multiple uses that are explained in our engineering assignment writing. Several objects are complicated. The three major views do not present geometry in the best way. Some features do not appear true shape and size or are hidden. In these cases, auxiliary views are drawn. A primary auxiliary view is projected as a principal view and a secondary auxiliary view is projected as a primary auxiliary view.

If an object is in a fixed position then as an observer, you can move freely around the object. You may look at an object to make the features visible and for the true shape and size of the object. There are infinite possible views. Too may views make it difficult a drawing difficult. If you omit views to offer the true view size of features shall correct the dimension of a drawing. You have to offer views, which can help in production and provide a representation of an object’s geometry.
